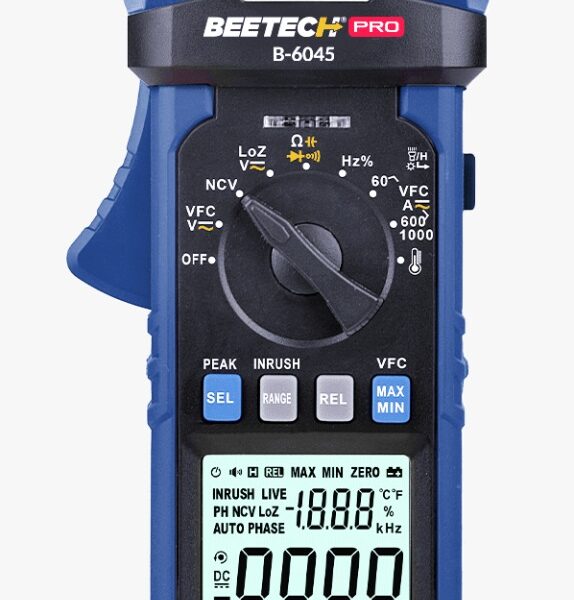

BEETECH B-6045 AC/DC CLAMPMETER

Brands:
Category:

Availability: In Stock

SPECIFICATIONS

  • AC VOLTAGE ( ACV )
    Range : 600mV – 1000V
    Resolution : 0.1mV – 1V
    Accuracy : ±(1.0% ±3d) / ±(1.0% ±5d)
  • DC VOLTAGE ( DCV )
    Range : 600mV – 1000V
    Resolution : 0.1mV – 1V
    Accuracy : ±(0.5% ±3d) / ±(0.8% ±5d)
  • AC & DC CURRENT (ACA & DCA)
    Range : 60A – 1000A
    Resolution : 0.01A – 1A
    Accuracy : ±(2.5% ±10d)
    FrequencyResponse:TRMS50Hz–60Hz
  • RESISTANCE (Ω)
    Range : 600Ω – 60MΩ
    Resolution : 0.1Ω – 0.01MΩ
    Accuracy : ±(1.0% ±5 d) / ±(1.0% ±2 d) / ±(1.2% ±8 d)

  • CAPACITANCE
    Range : 10nF- 100mF
    Resolution : 0.01nF – 0.1mF
    Accuracy :  ±(4.0% ±25 d) / ±(4.0% ±15 d) / ±(5.0% ±25 d)
    Overload Protection : 250VDC or 250VAC RMS
  • FREQUENCY (Hz)
    Range : 10Hz – 10MHz
    Resolution : 0.01Hz – 0.01MHz
    Accuracy : ±(0.5% ± 4 d
    Overload Protection : 250VDC or 250VAC RMS
  • TEMPERATURE :
    Range : -20°~ 1000°C / -4° ~1832°F

FEATURES

  • Display 6000 counts
  • Range Auto Ranging
  • Continuity
  • Input Polarity Displays negative“-”
  • NCV & Live Test
  • TRMS
  • Auto Power Off
  • Overload Protection
  • Relativity Function
  • Data hold
  • Conductor size 42mm
  • Jaw opening 42mm
  • LCD Backlight Yes
  • Bar display Yes
  • Operating °C 0°C –40°C (<80% RH)
  • Dimension 236(L) x 85(W) x 40(H)
  • Weight 305g(including battery)
  • Measuring principle Double Integral A/D
  • Sampling rate About 2 times / second

NOTABLE FEATURES

(i) 1000V AC/DC Voltage
(ii) Inrush Current
(iii) Jaw opening from both the sides
(iv) Dual Range Display
(v) Double Mold Injection
(vi) Light and Sound NCV Indication
(vii) Quick Response Time
(viii) Overload Protection

Category:

Description

BEETECH B-6045 PRO is TRMS Digital Clamp meter measuring 1000A AC/DC Current, 1000V AC/DC Voltage, Temperature, Frequency, Capacitance, Resistance, NCV & more. It is designed and conforms to IEC-61010-1 and IEC-61010-2-032 with safety rating of CAT IV 600V and CAT III 1000V. It features a 42mm clamp jaw and a robust design for heavy duty and everyday use.
