Description | SPECIFICATIONS
- AC VOLTAGE ( ACV )
Range : 600mV – 1000V
Resolution : 0.1mV – 1V
Accuracy : ±(1.0% ±3d) / ±(1.0% ±5d)
- DC VOLTAGE ( DCV )
Range : 600mV – 1000V
Resolution : 0.1mV – 1V
Accuracy : ±(0.5% ±3d) / ±(0.8% ±5d)
- AC & DC CURRENT (ACA & DCA)
Range : 60A – 600A
Resolution : 0.01A - 0.1A
Accuracy : ±(2.5% ±10d)
- RESISTANCE (Ω)
Range : 600Ω – 60MΩ
Resolution : 0.1Ω – 0.01MΩ
Accuracy : ±(1.0% ±5 d) / ±(1.0% ±2 d) / ±(1.2% ±8 d)
Overload Protection : 250VDC or 250VAC RMS
- CAPACITANCE
Range : 10nF- 100mF
Resolution : 0.01nF – 0.1mF
Accuracy : ±(4.0% ±25 d) / ±(4.0% ±15 d) / ±(5.0% ±25 d)
Overload Protection : 250VDC or 250VAC RMS
- FREQUENCY (Hz)
Range : 10Hz – 10MHz
Resolution : 0.01Hz – 0.01MHz
Accuracy : ±(0.5% ± 4 d
Overload Protection : 250VDC or 250VAC RMS
- TEMPERATURE :
Range : -20°~ 1000°C / -4° ~1832°F
-
FEATURES
- Display 6000 counts
- Range Auto Ranging
- Continuity
- Input Polarity Displays negative“-”
- NCV & Live Test
- TRMS
- Auto Power Off
- Overload Protection
- Relativity Function
- Data hold
- Conductor size 30mm
- Jaw opening 34mm
- LCD Backlight Yes
- Bar display Yes
- Operating °C 0°C –40°C (<80% RH)
- Dimension 220(L) x 75(W) x 40(H)
- Weight 237g(including battery)
- Measuring principle Double Integral A/D
- Sampling rate About 2 times / second
NOTABLE FEATURES
(i) 1000V AC/DC Voltage
(ii) Inrush Current
(iii) Jaw opening from both the sides
(iv) Dual Range Display
(v) Double Mold Injection
(vi) Light and Sound NCV Indication
(vii) Quick Response Time
(viii) Overload Protection | SPECIFICATIONS :
- DC CURRENT : 600A
- AC CURRENT : 600A
- AC VOLTAGE : 600V
- DC VOLTAGE : 600V
- DISPLAY : 3 5/6 digit,6000
- BETTERY : 9V (6F22)
- TEMPERATURE : 600°C
- CAPACITANCE : 1000uF
- FREQUENCY : 10 MHz
-
RESISTANCE : 60MΩ
FEATURES:
- Op. Current <2mA (no back light).
- LCD Display,
- Auto / Manual Ranging, Data Hold.
- NCV APO, Temperature, Frequency, Max Hold.
- Diode Test, Resistance, Duty Cycle.
- Continuity Buzzer, Backlight, Trms.
- Low Battery Indicated.
- Duty Cycle : 0.1% - 99.9%.
| SPECIFICATIONS :
- DC VOLTAGE : 1000V
- AC VOLTAGE : 750V
- AC CURRENT : 300A
- RESISTANCE : 60M ohms
- FREQUENCY : 50⁓1KHz
- TEMPERATURE : -40~2000℉
- CAPACITANCE : 60nF/600nF/6µF/60µF/400µ/20mF
FEATURES :
- TRANSFORMER JAWS
- TRIGGER
- RANGE BUTTONS
- Hz/DUTY BUTTON
- "COM" TERMINAL
- DATA HOLD /BCKLIGHT BUTTON
- INPUT TERMINAL
- FUNCTION SWITCH/RANGE SWITCH
- SELECT BUTTON
| SPECIFICATIONS :
- DC VOLTAGE : 600V
- AC VOLTAGE : 600V
- AC CURRENT : 400A
- RESISTANCE : 20MV
- STORAGE TEMPERATURE : -20°C to 60°C, 0 to 80% R.H.
- OPERATING ENVIORNMENT : 0°C to 50°C at < 70% relative humidity.
- Dimensions : 185 x 65 x 28mm
- Weight : 170gms including battery.
FEATURES:
- DISPLAY : 3½ digit liquid crystal display (LCD)
- LOW BATTERY INDICATION : is displayed when the battery voltage drops below the operating level.
- Weight : 170gms including battery (approx.)
- Maximum Jaw : 25mm
| SPECIFICATIONS :
- DC VOLTAGE : 1000V
- AC VOLTAGE : 750V
- ACCURRENT : 1000V
- RESISTANCE : 60M ohms
- TEMPERATURE : -40~2000℉
FEATURES :
- TRANSFORMER JAWS
- TRIGGER
- Hz/DUTY BUTTON
- RANGE BUTTON
- 3 5/6 DIGIT LCD DISPLAY
- "V" INPUT TERMINAL
- "COM" TERMINAL
- SELECT BUTTON
- FUNCTION SWITCH /RANGE SWITCH
- D. HOLD BUTTON
| SPECIFICATIONS :
- AC VOLTAGE : 750V
- DC VOLTAGE : 1000V
- AC CURRENT : 1000A
- DC CURRENT : 1000A
- RESISTANCE : 60M
- CAPACITANCE : 1000µF
- TEMPERATURE : -0 F~1832ºF
FEATURES :
- DISPLAY : 3 5/6 DIGIT DISPLAY
- POLARITY : AUTO POLARITY
- SAMPLING RATE : 2~3 TIMES/SECOND
- POWER : 3V BETTERY
- JAW OPENING : 50mm
|

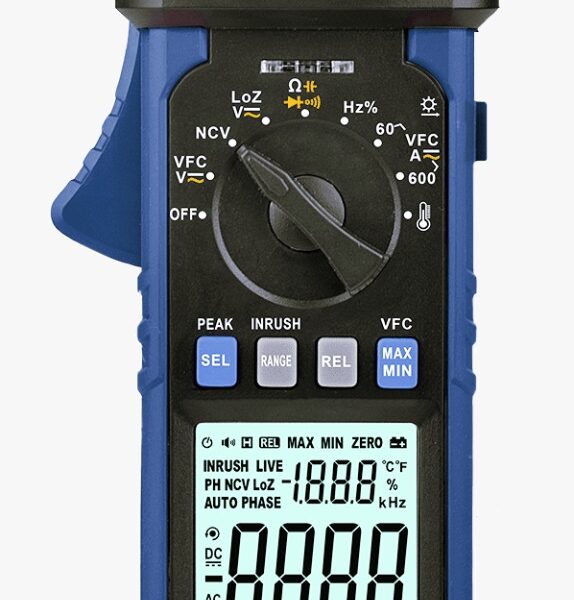

Content | BEETECH B-6025 PRO is a TRMS Digital Clamp meter measuring 600A AC/DC Current, 1000V AC/DC Voltage, Temperature, Frequency, Capacitance, Resistance & more. It is designed and conforms to IEC-61010-1 and IEC-61010-2-032 with safety rating of CAT IV 600V and CAT III 1000V. It features a 34mm clamp jaw and a robust design for heavy duty and everyday use.
| MECO-G TRMS Clamp Meter, R-2070D is a premium quality product from MECO-G. All MECO-G TRMS Clamp Meter, R-2070D are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture MECO-G TRMS Clamp Meter, R-2070D, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. MECO-G products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of MECO-G Clamp Meters . | | This Meco Digital Clamp Meter is an auto-ranging clamp meter having a massive 2000 count of 3.5 digits. In addition, one of the biggest advantages of this automated Meco clamp meter is that it can hold a large quantity of data too. The clamp meter has an LCD display and also comes with an auto power-off function. It displays OT and -OI both, and this clamp meter has a function button, hold button and max button. This clamp meter is automatic, positive implied and negative polarity indication. | The MECO-G 1000A AC Digital Auto Ranging Clamp Meter is a great choice for those who need a reliable and accurate clamp meter. It features a large jaw opening for easy clamping, auto ranging for easy use, and a backlit LCD display for easy reading. The MECO-G clamp meter is a great choice for measuring dc voltage and current, as well as ac current. It has a range of 600mV to 6V, 60V to 600V, and 1000V, making it suitable for a variety of applications. The ac current range is 60A to 600A, and 1000A, with an accuracy of (2.5% of reading + 10 digits). The clamp meter also features a resistance accuracy of (1.5% of reading + 5 digits). | |
