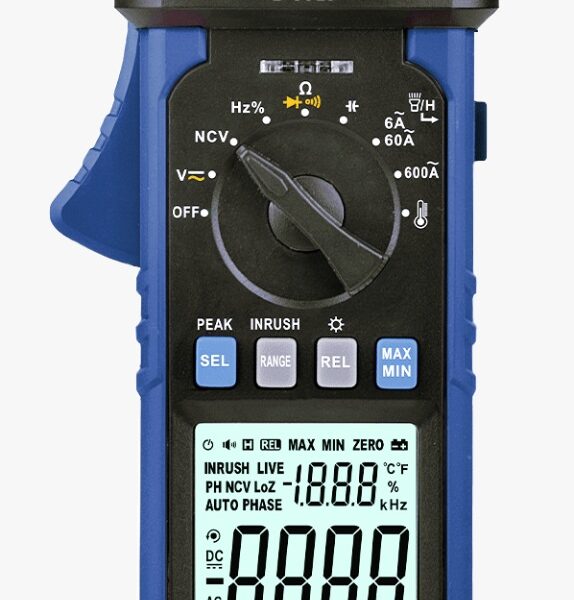

BEETECH B-6015 PRO DIGITAL CLAMPMETER

Brands: BEETECH

Category: CLAMPMETER

Availability: In Stock

SPECIFICATIONS

AC VOLTAGE ( AVA )
Range : 600mV – 1000V
Resolution : 0.1mV – 1V
Accuracy : ±(1.0% ±3d) / ±(1.0% ±5d)
DCVOLTAGE ( DCV )
Range : 600mV – 1000V
Resolution : 0.1mV – 1V
Accuracy : ±(0.5% ±3d) / ±(0.8% ±5d
AC CURRENT ( ACA )
Range : 6A – 600A
Resolution : 0.001A – 0.1A
Accuracy : ±(2.5% ± 10 d)
RESISTANCE (Ω)
Range : 600Ω – 60MΩ
Resolution : 0.1Ω – 0.01MΩ
Accuracy : ±(1.0% ±5 d) / ±(1.0% ±2 d) / ±(1.2% ±8 d)
Overload Protection : 250VDC or 250VAC RMS
CAPACITANCE
Range : 60nF- 100mF
Resolution : 0.01nF – 0.1mF
Accuracy : ±(4.0% ±25 d) / ±(4.0% ±15 d) / ±(5.0% ±25 d)
Overload Protection : 250VDC or 250VAC RMS
FREQUENCY (Hz)
Range : 10Hz – 10MHz
Resolution : 0.01Hz – 0.01MHz
Accuracy : ±(0.5% ± 4 d
Overload Protection : 250VDC or 250VAC RMS
TEMPERATURE :

Range : -20°~ 1000°C / -4° ~1832°F
DIODE & CONTINUITY :
BUZZER : Built-in buzzer will beep if Resistance is less than 50Ω± 30 Ω
DIODE : Display approximate forward voltage of diode.

FEATURES

Display 6000 counts
LCD Backlight
Data Hold
NCV & LIVE Test
Relativity Function
TRMS
Auto Ranging
Bar display
Range selection Auto
Over Range Displays “OL”
Input Polarity Displays negative“-”
Conductor size 30mm
Measuring Principal Double Integral A/D Conversion
Sampling rate About 2 times / second
Overload Protection
Dimension 220(L) x 75(W) x 40(H)
Weight 290g(including battery)
Jaw opening 34mm

NOTABLE FEATURES

(i) 1000V AC/DC Voltage
(ii) Inrush Current
(iii) Jaw opening from both the sides
(iv) Dual Range Display
(v) Double Mold Injection
(vi) Light and Sound NCV Indication
(vii) Quick Response Time
(viii) Overload Protection

Category: CLAMPMETER

Description
Reviews (0)

Description

BEETECH B-6015 PRO is TRMS Clamp meter measuring 600A AC Current, 1000V AC/DC Voltage, Temperature, Frequency, Capacitance, Resistance, NCV, Diode test & more. It is designed and conforms to IEC-61010-1 and IEC-61010-2-032 with safety rating of CAT IV 600V and CAT III 1000V. It features a 34mm clamp jaw and a robust design for heavy duty and everyday use.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “BEETECH B-6015 PRO DIGITAL CLAMPMETER”
